指纹模组
指纹模组

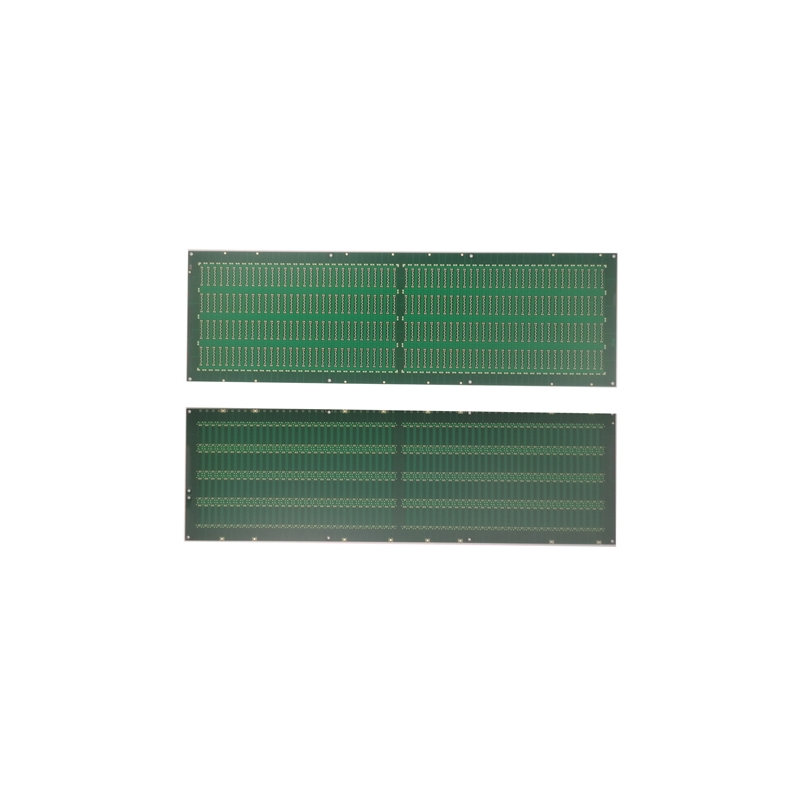

产品型号：Touch Fingerprint
产品描述：

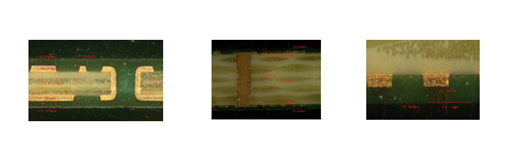

◆ Structure: 2L，Substrate thickness tolerance±15μm;Mechanical Drilling，Filled Via with SM or resin;
◆ Tenting process，L/S≥35/35μm;
◆ AUS320/25±7μm，SM Flatness≤7um;
◆ Surface finish: Soft Ni/Au +Etch-back
